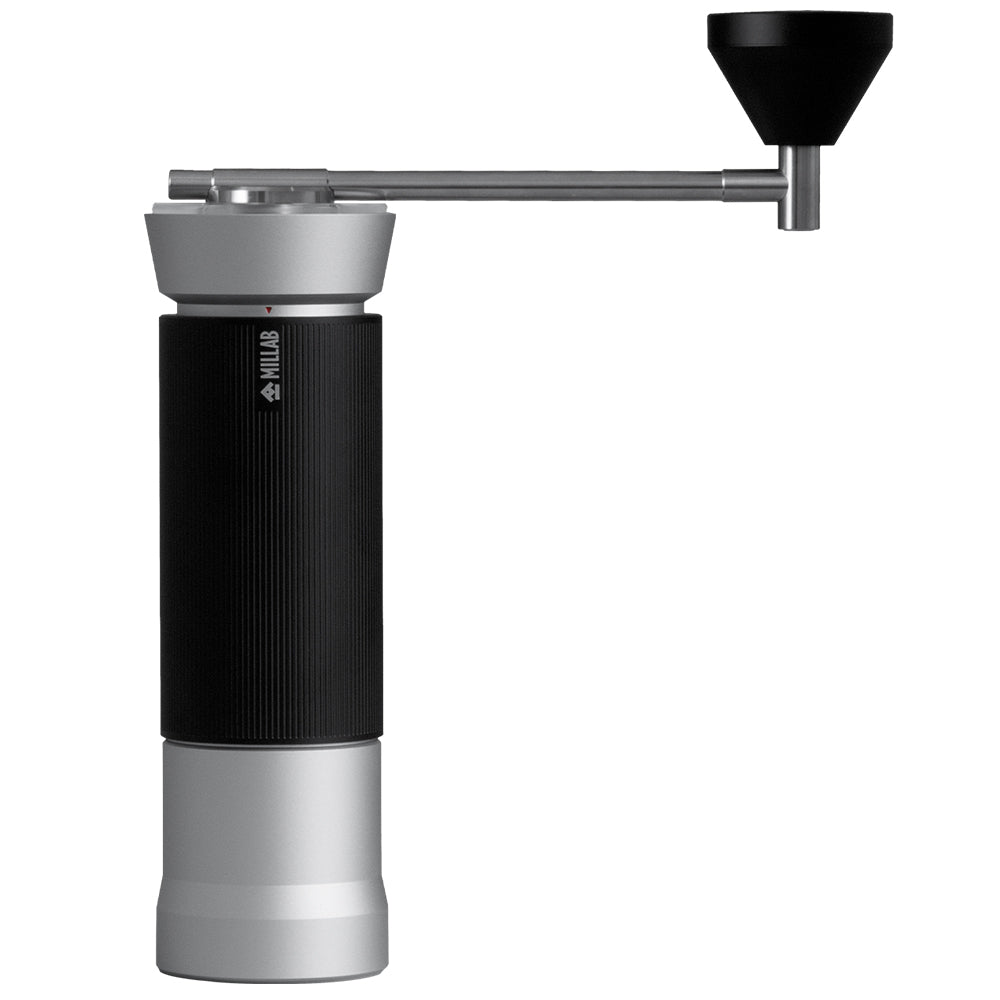

Timemore x Millab M01 Coffee Grinder

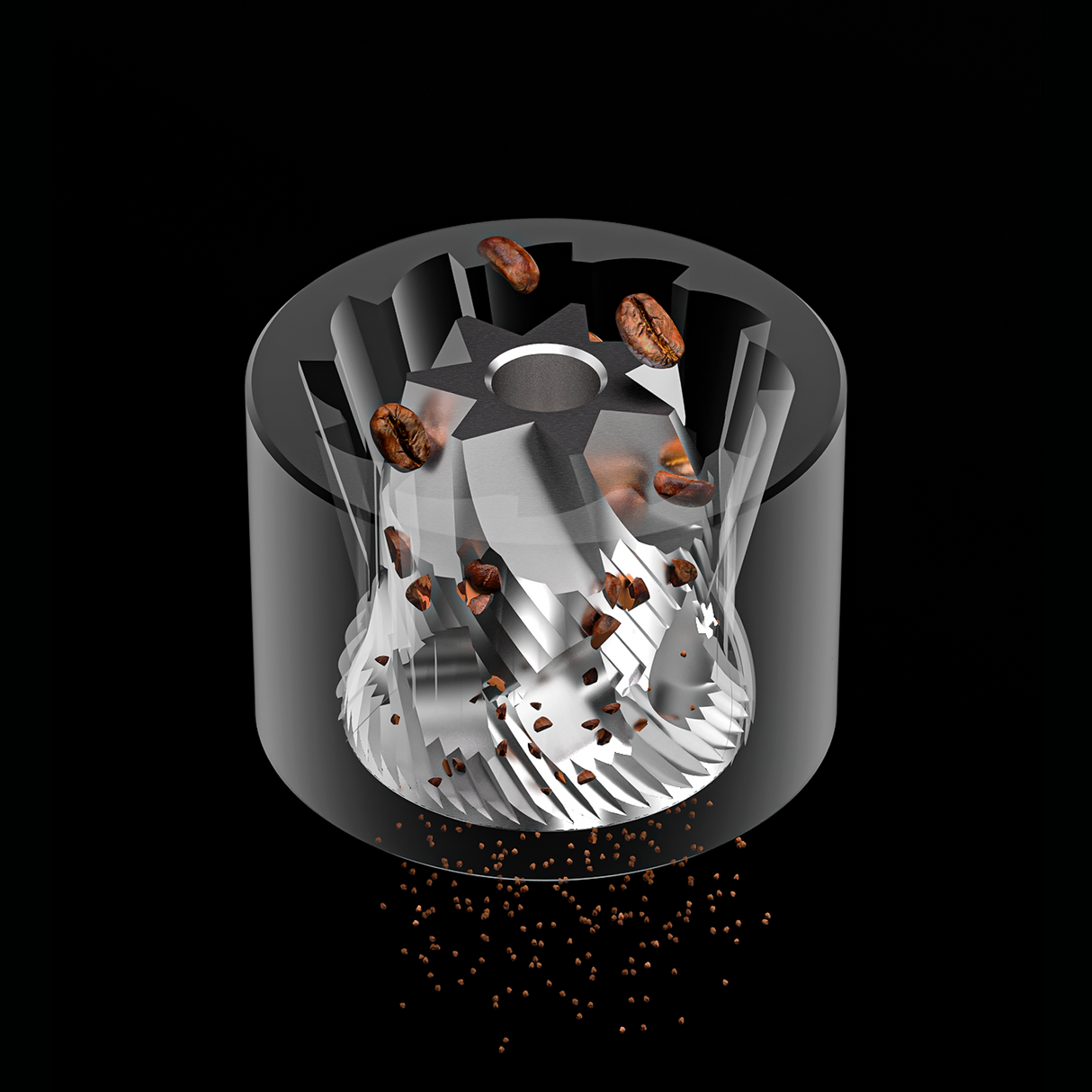

• All-New "Pineapple" Burrs: Features a vertically elongated conical burr design that creates a 60mm effective cutting surface, rivaling the grind path of 64mm flat burrs. This 5-stage grinding structure spaces out the beans during the grind, significantly reducing irregular fracturing and maximizing particle uniformity.

• Premium Burr Construction: The burrs are manufactured from hardened SUS420 stainless steel with a hardness rating of 58 HRC, precisely cut using a 5-axis CNC milling process with an accuracy of 0.005 mm.

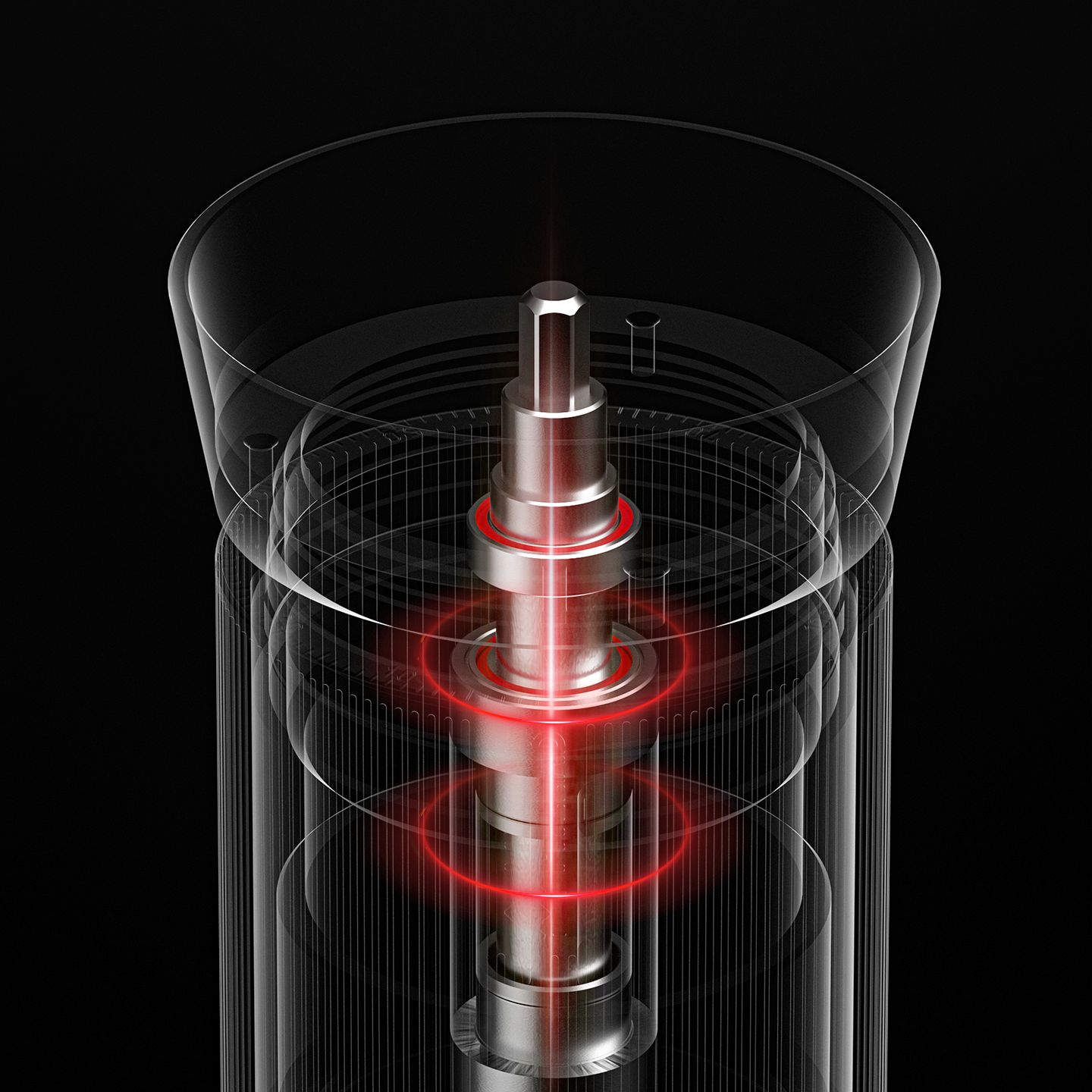

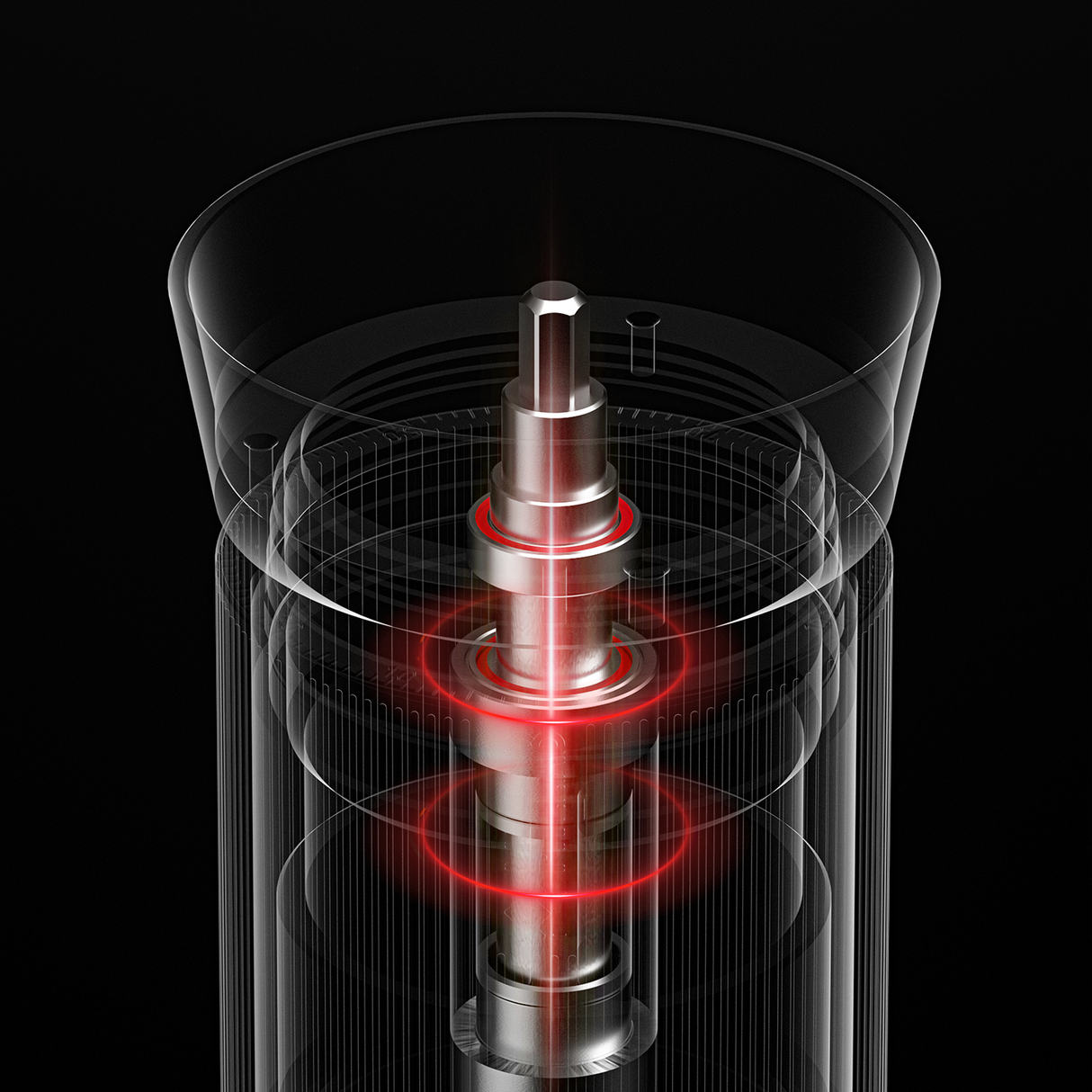

• Superfine Tolerances: Equipped with custom-engineered P7 bearings that offer a 5-micron tolerance and a runout as low as 3μm. This achieves an industry-leading 0.0725mm burr gap tolerance, ensuring absolute shaft stability during grinding.

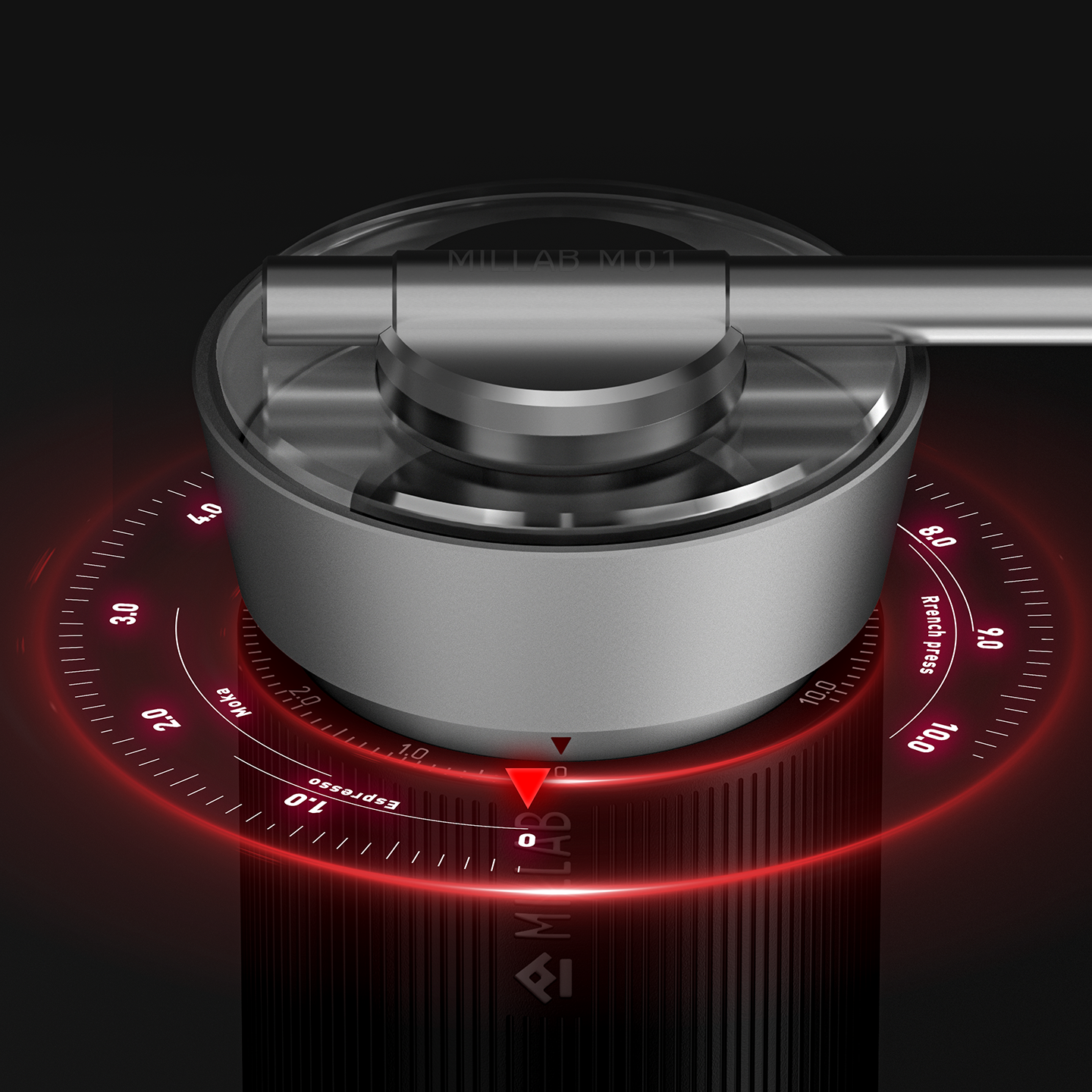

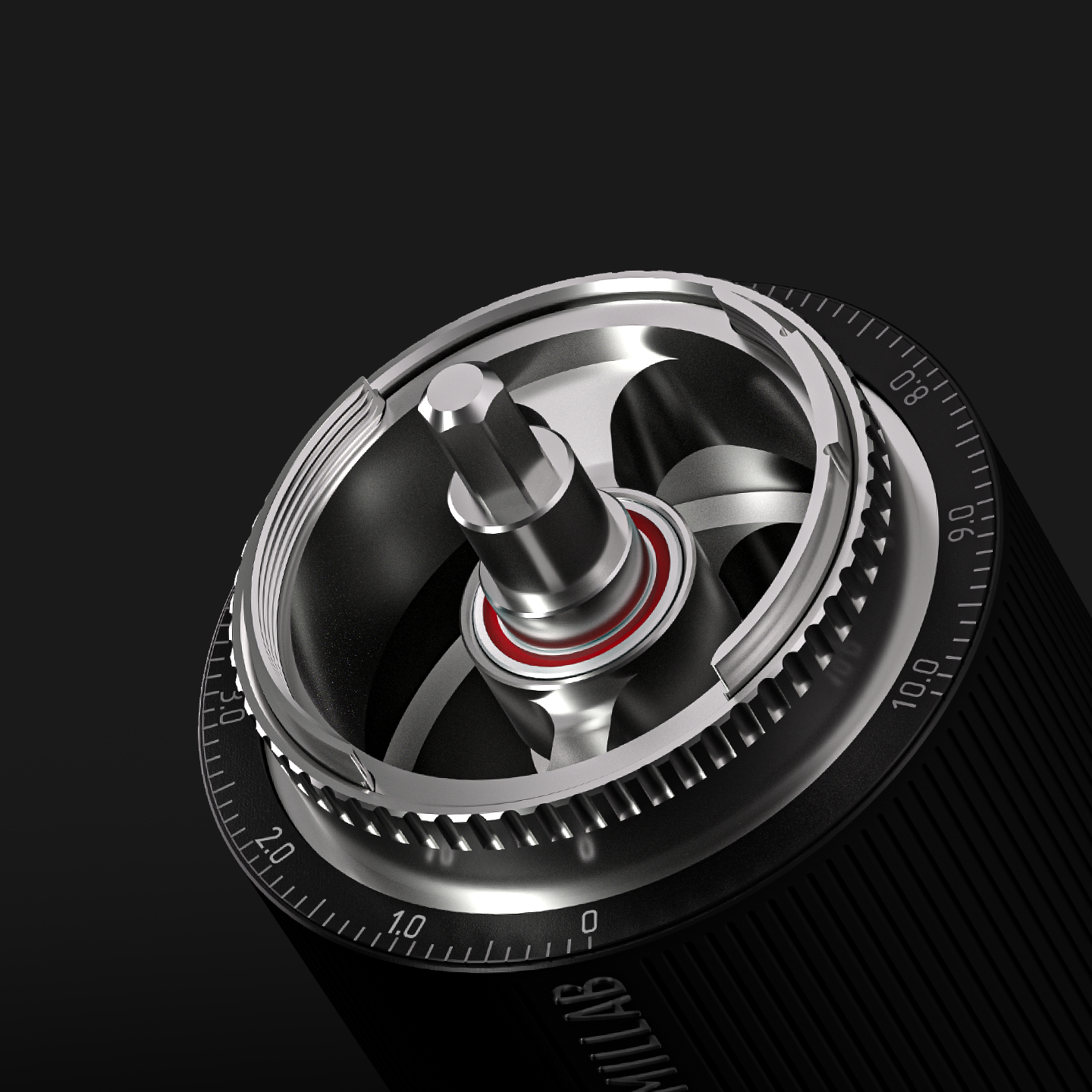

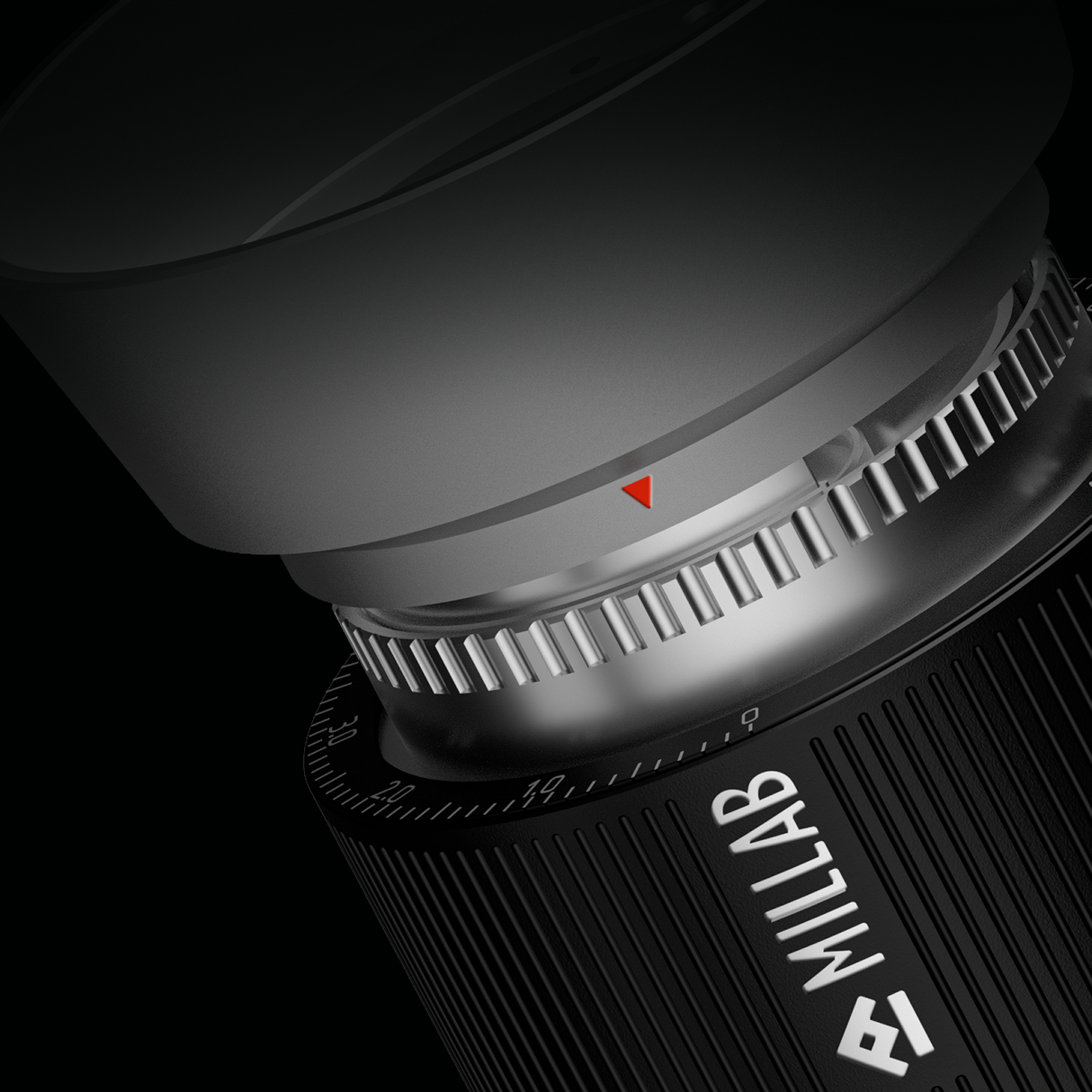

• External Micrometric Adjustment: The exterior dial integrates five precision-machined metal components to provide 100 stepped micro-adjustments. Each click translates to an exact 12.5-micron (0.0125mm) vertical travel, allowing for up to 40 distinct grind settings per brewing method.

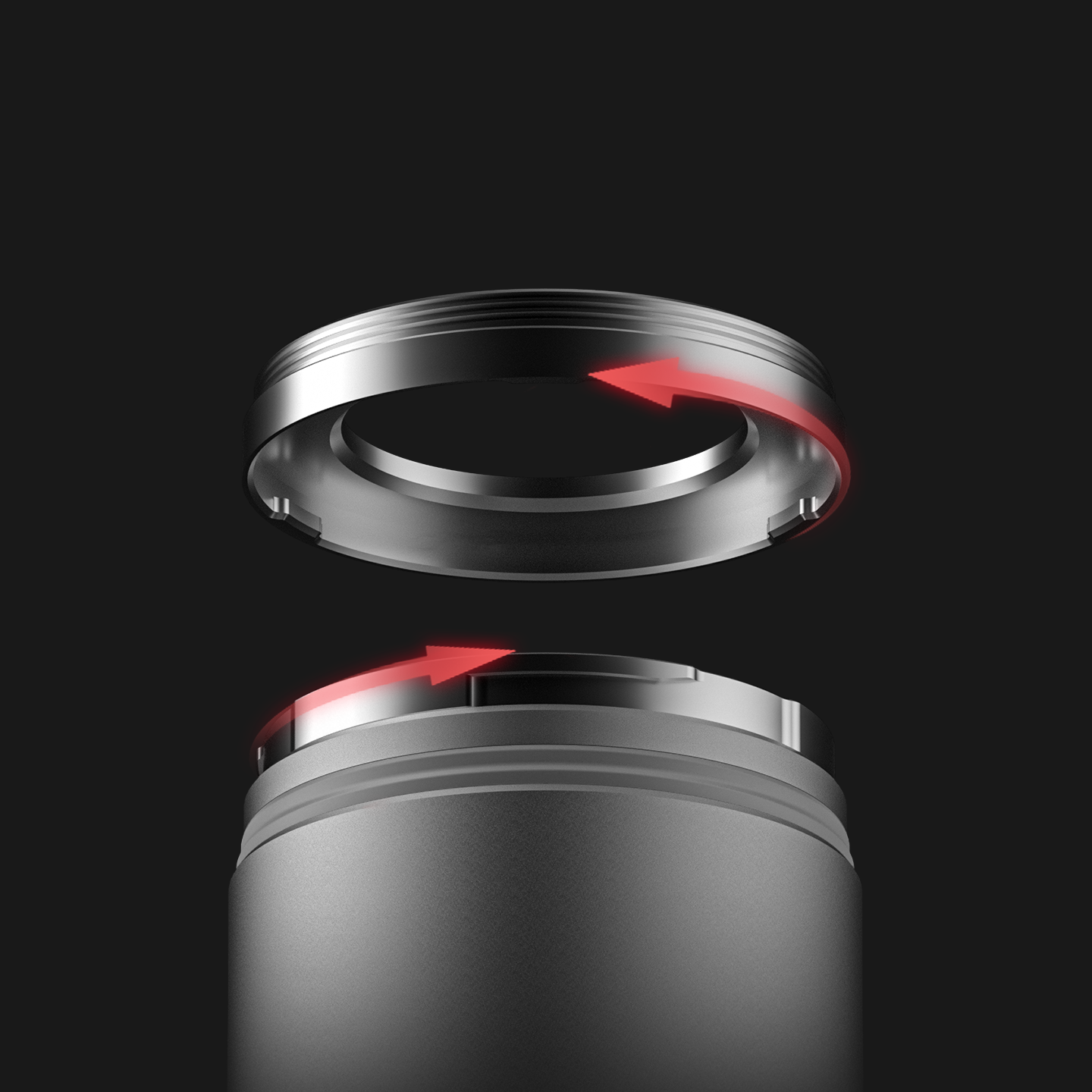

• Threadless Catch Cup: Secures to the grinder body using a quick swivel-lock coupling mechanism that snaps into place without the use of threads or magnets. It features an extra-large 50g capacity, a chamfered base edge, and a silicone foot for added stability.

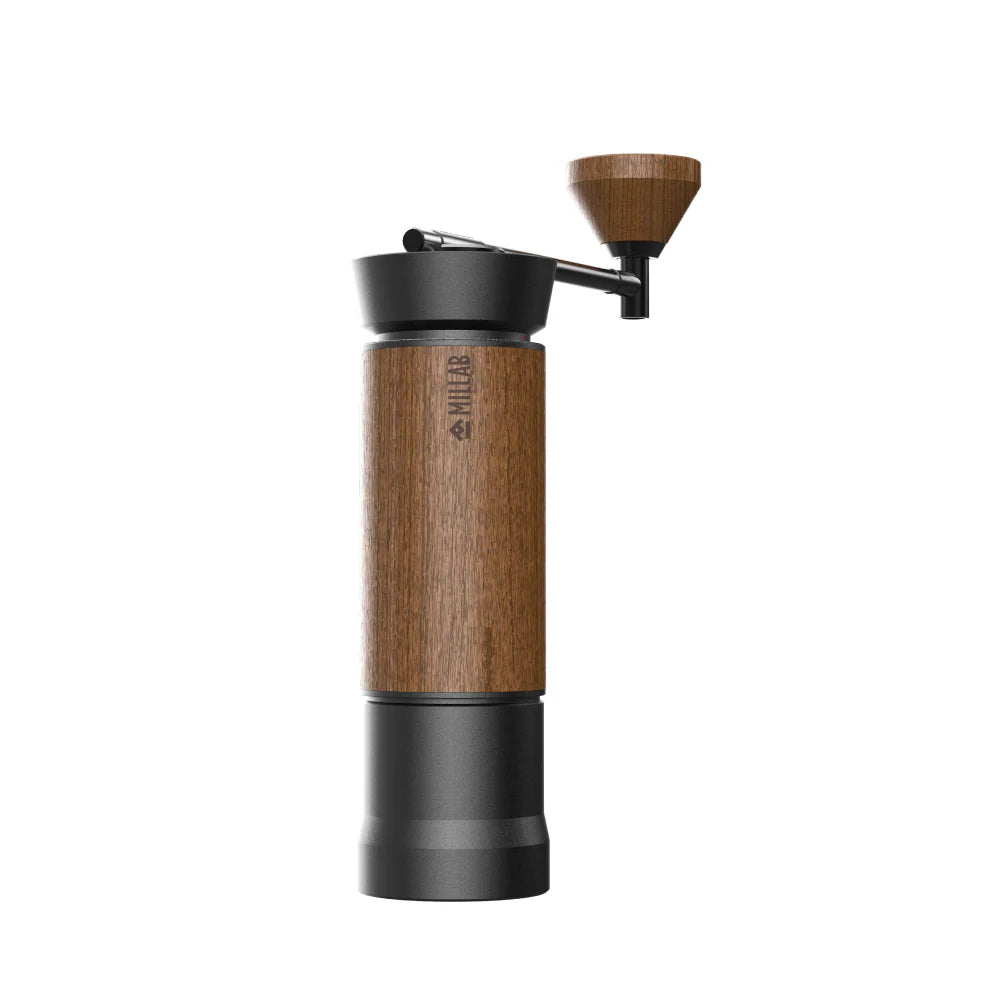

• Ergonomic Build & Grip: The grinder features a striated aluminum body (or a water and stain-resistant wood finish) to prevent slipping during use. The fully removable handle knob is available in high-grip aluminum or walnut.

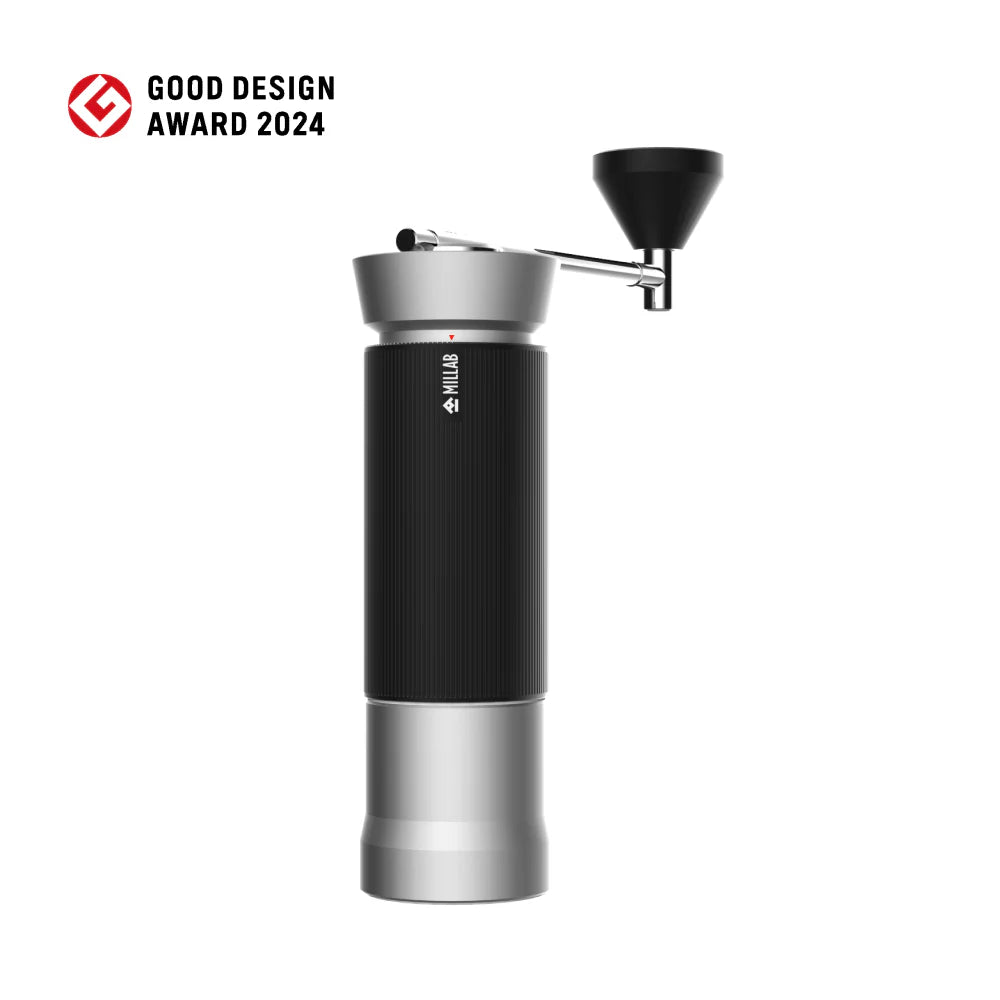

• Award-Winning Engineering: Recognized with the prestigious Good Design Award for its structural integrity, material quality, and functional precision.

Comprehensive Grind Guide

• Espresso: 0.0 – 1.5

• Moka Pot: 1.0 – 3.0

• Pour Over: 5.0 – 9.0

• French Press: 8.0 – 10.0

Technical Specifications

• Burr Type: 5-Stage Pineapple Conical Burrs

• Burr Material: SUS420 Hardened Stainless Steel (58 HRC)

• Adjustment Step: 12.5 Microns (0.0125 mm) per click

• Bearing Type: Custom P7 (5 μm tolerance)

• Catch Cup Capacity: 50 g

• Body Material: Aluminum / Wood

• Knob Material: Aluminum / Walnut

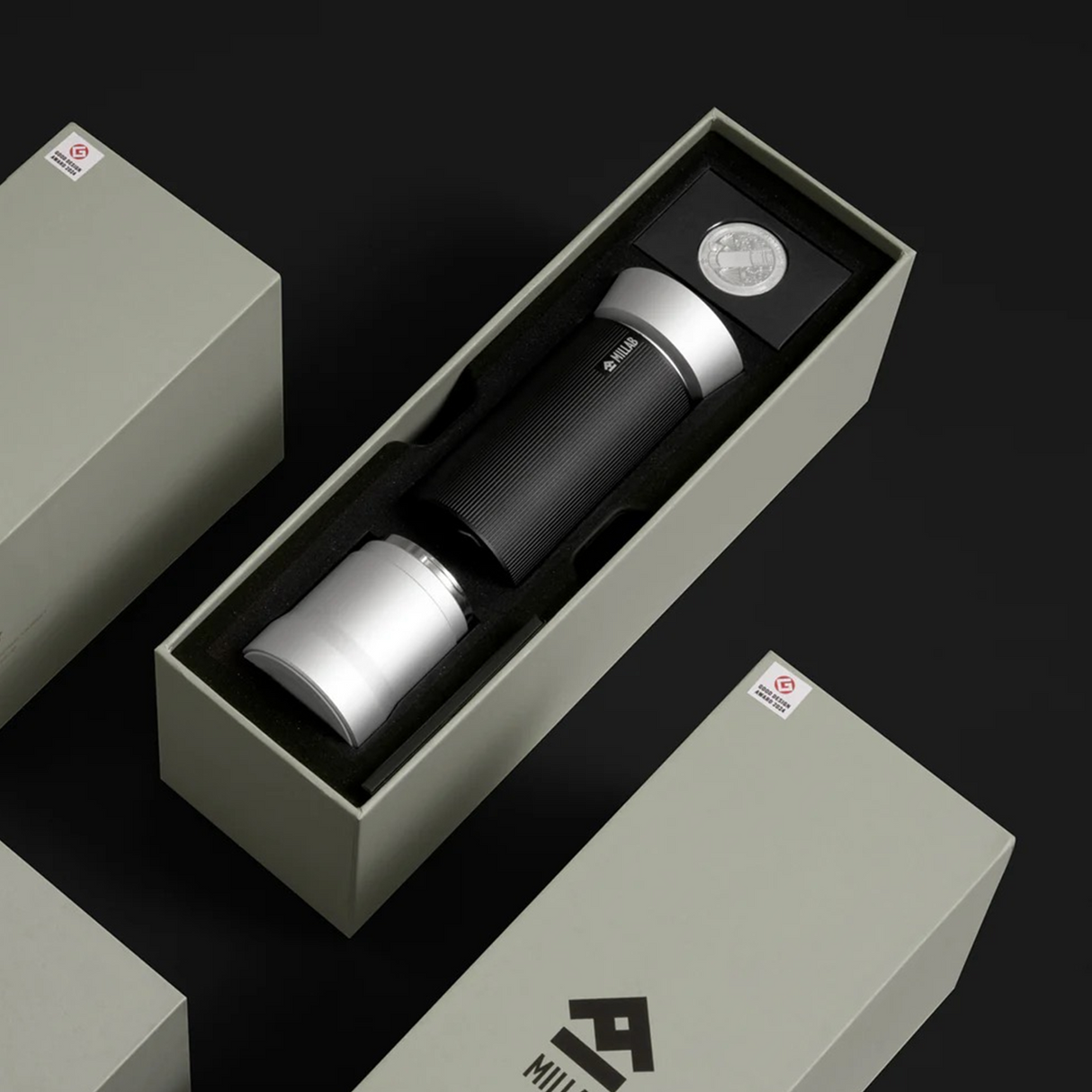

What's in the Box

• M01 Grinder

• Cleaning Brush

• Commemorative Coin

• M01 User Manual
